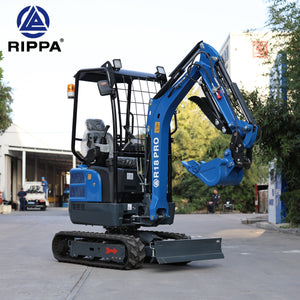

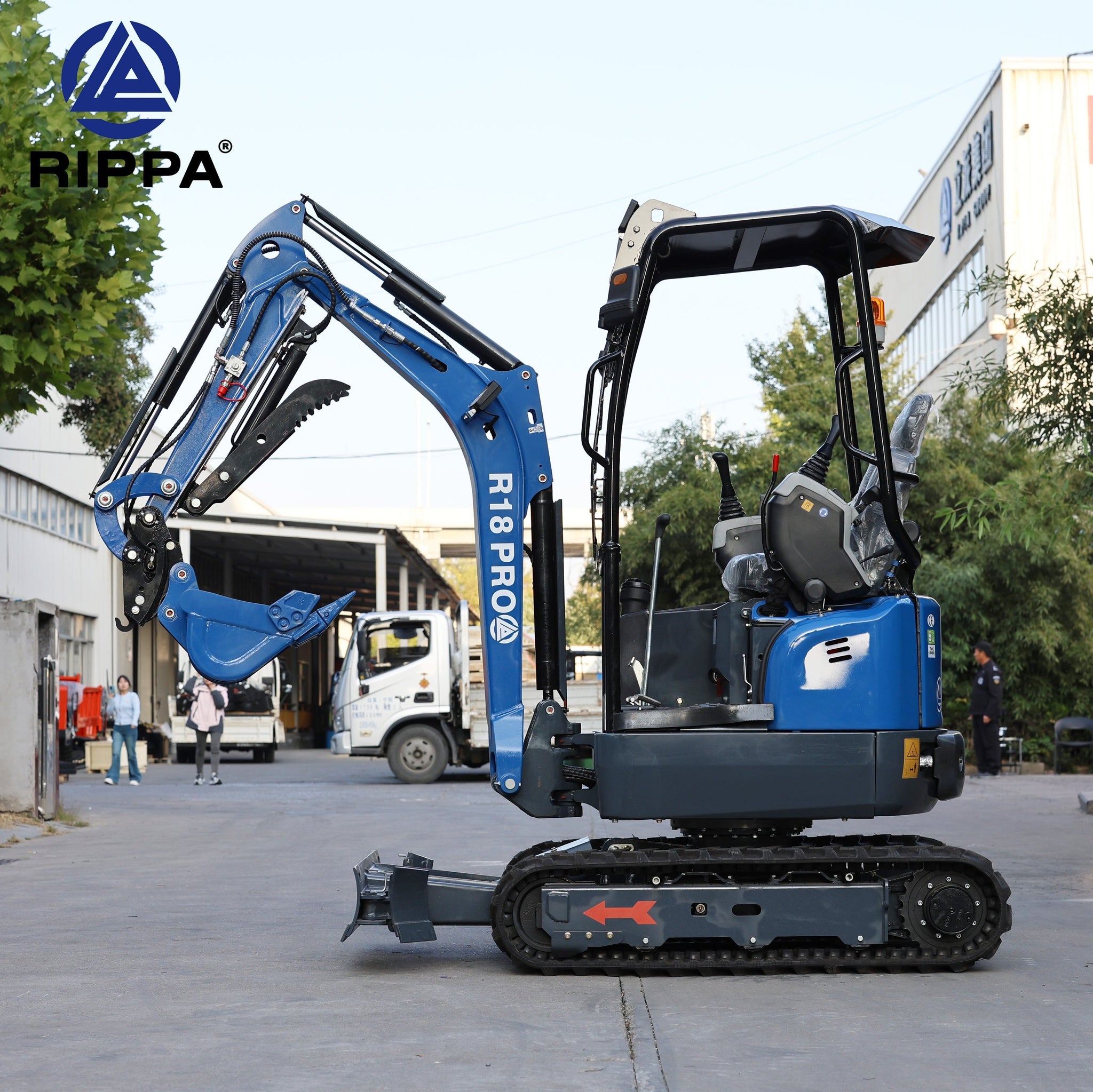

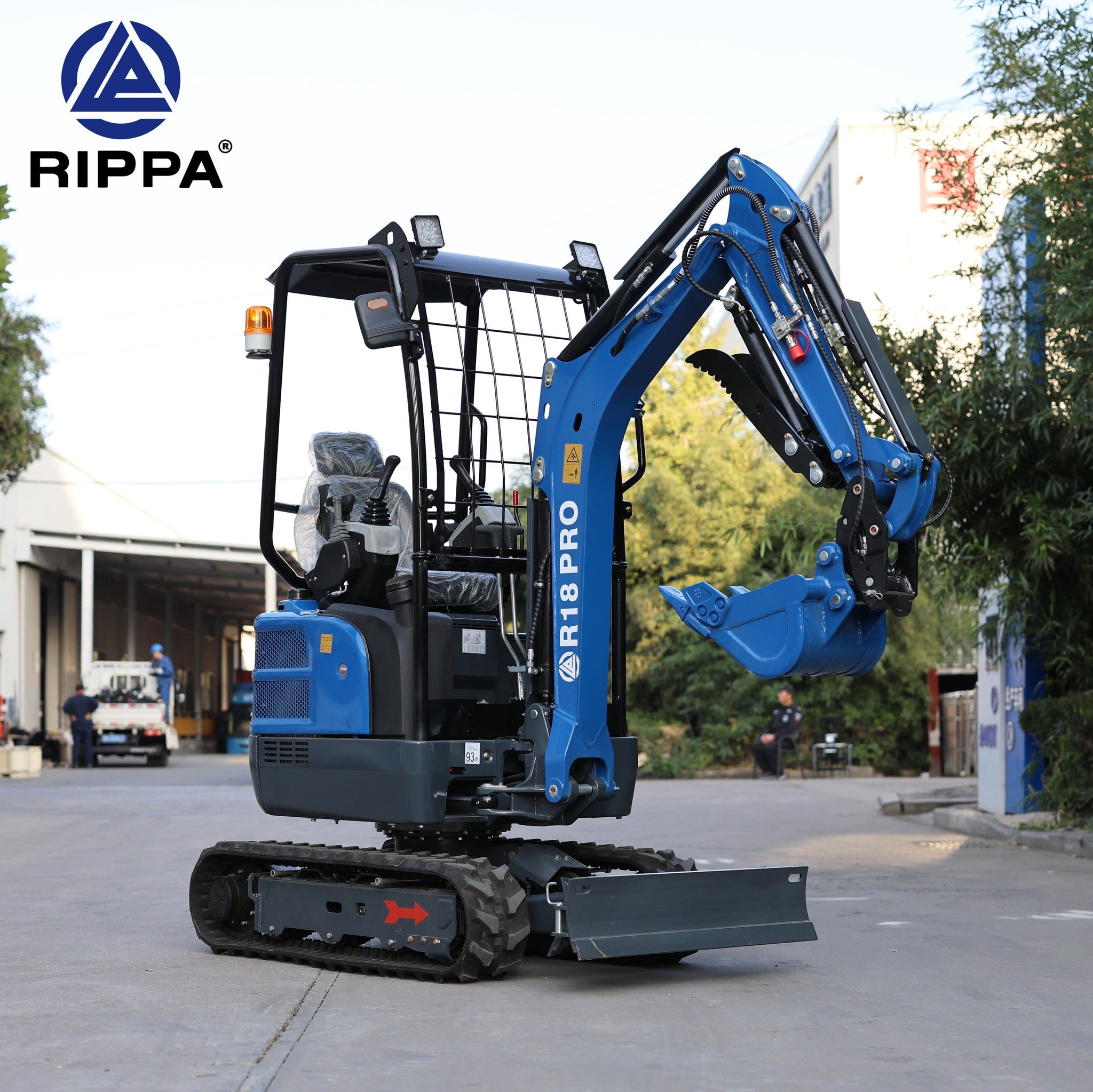

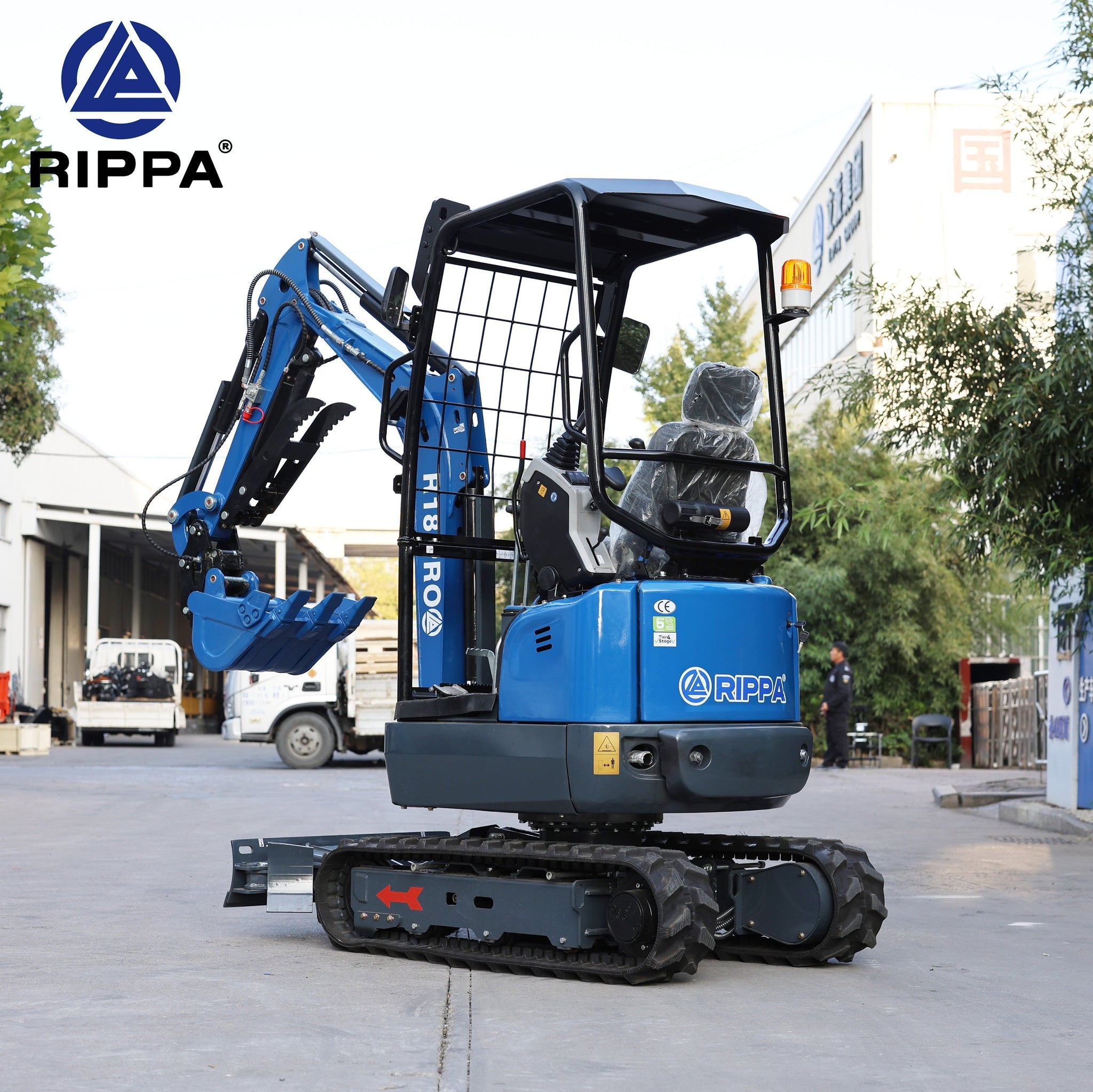

R18 Mini Excavator with Kubota Engine and Hydraulic Quick Hitch

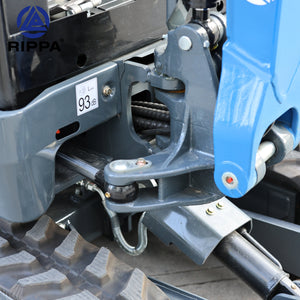

1.8 Tonne | Kubota Japanese Engine with Australia Wide Warranty, Delivered Directly by Kubota | Includes swing boom, telescopic track, and 40 cm digging bucket.

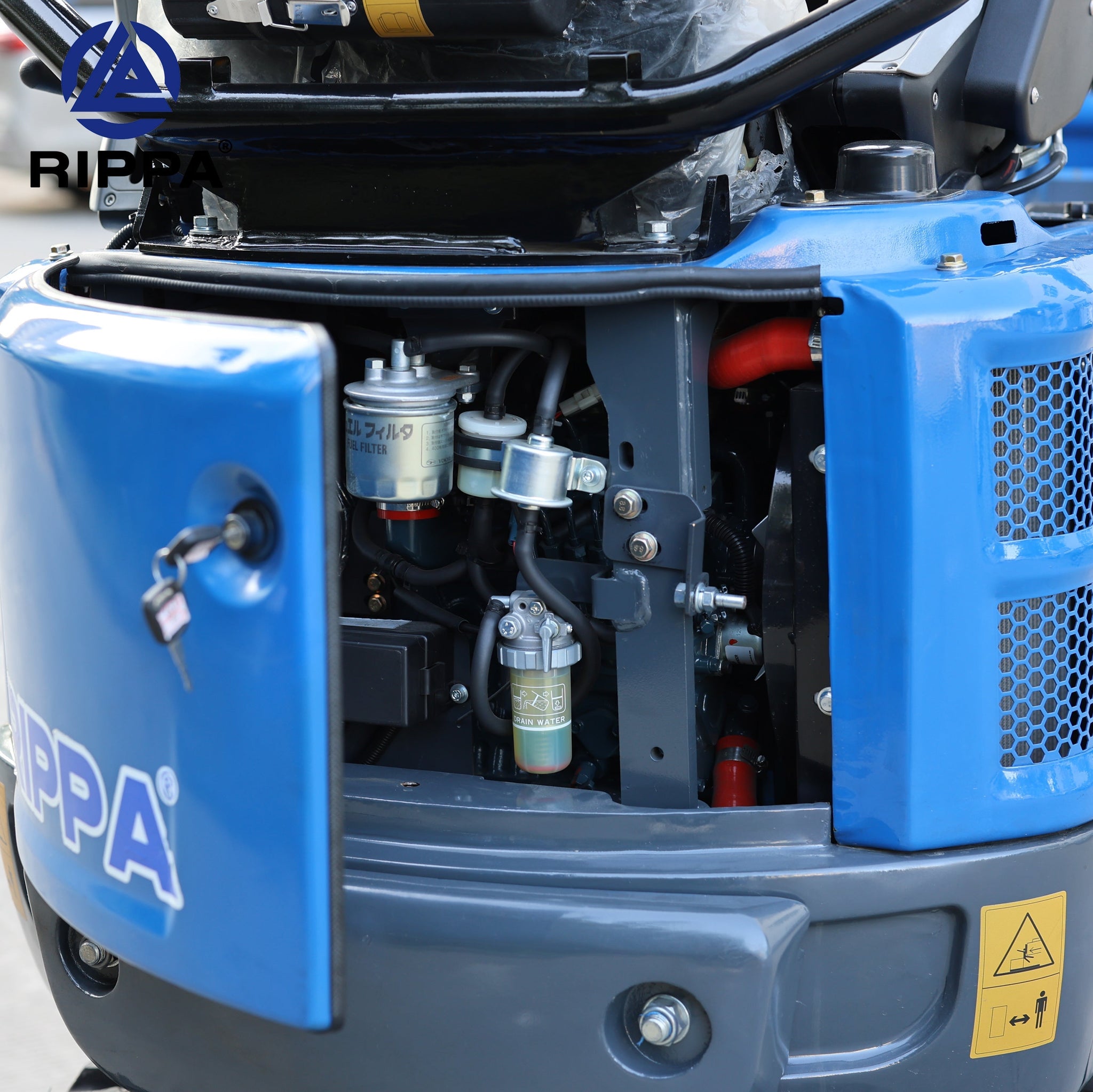

1. Engine
The R18 is powered by a Kubota Japanese engine with Australia wide warranty, delivered directly by Kubota, delivering 11.8 kW (16.1 HP) at 2300 RPM.
- Engine Model: Kubota D902 – 3-cylinder, water-cooled diesel engine
- Displacement: 0.898 L
- Oil Capacity: 3.7 L
- Low vibration, high output, fuel-efficient
- Reliable nationwide parts and service coverage
2. Fuel
-
Fuel Type: Diesel
-
Fuel Grade: 0# or -10#
-
Fuel Tank Capacity: 24 L
-
Hydraulic Oil Tank: 22 L
3. Performance
-
Operating Weight: 1818 kg
-
Bucket Capacity: 0.045 m³
-
Travel Speed: 0–1.5 / 0–2.8 km/h
-
Ground Pressure: 30.33 KPa
-
Climbing Ability: 30%
-
Digging Force: 12.8 kN
-
Max Digging Radius: 3975 mm
-
Max Digging Depth: 2420 mm
-
Max Dump Height: 2182 mm
-
Max Digging Height: 3187 mm
-
Track Width Adjustment: 989–1309 mm
4. Other Specs
-

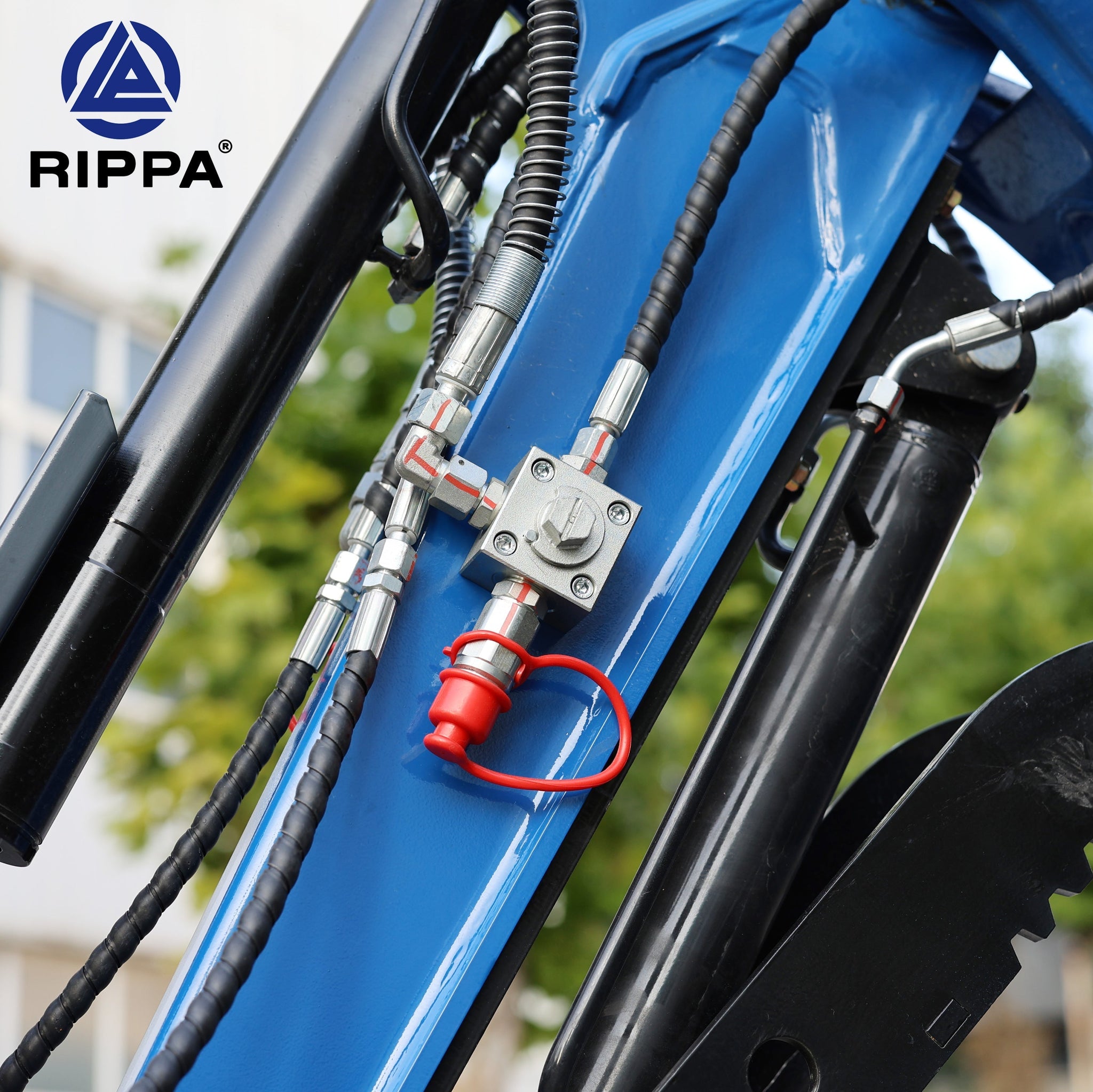

Hydraulic Pump: Variable piston pump (Model 18 – Taifeng)
-
Max Flow: 41.4 L/min
-
Rated Pressure: 18 MPa | Max Pressure: 22 MPa
-
Multi-Way Valve: 9-way – Taifeng
-
Travel Motor: Built-in LTM02PA – Likechuan
-
Swing Motor: Hydraulic – 245 displacement
-

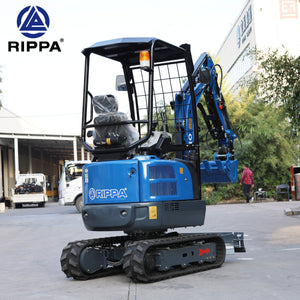

Chassis: Rubber or steel tracks, 78 rubber blocks
-
Track Tensioning: Butter tensioner
-
Quick Hitch: Manual or hydraulic
-
Attachments: Rake, Grabber, Ripper, Breaker
-
Cab: –
-
Handrail: –
- Dimensions:
- Length: 2403 mm
- Width: 989 mm
- Height: 2322 mm
- Ground Clearance: 486 mm

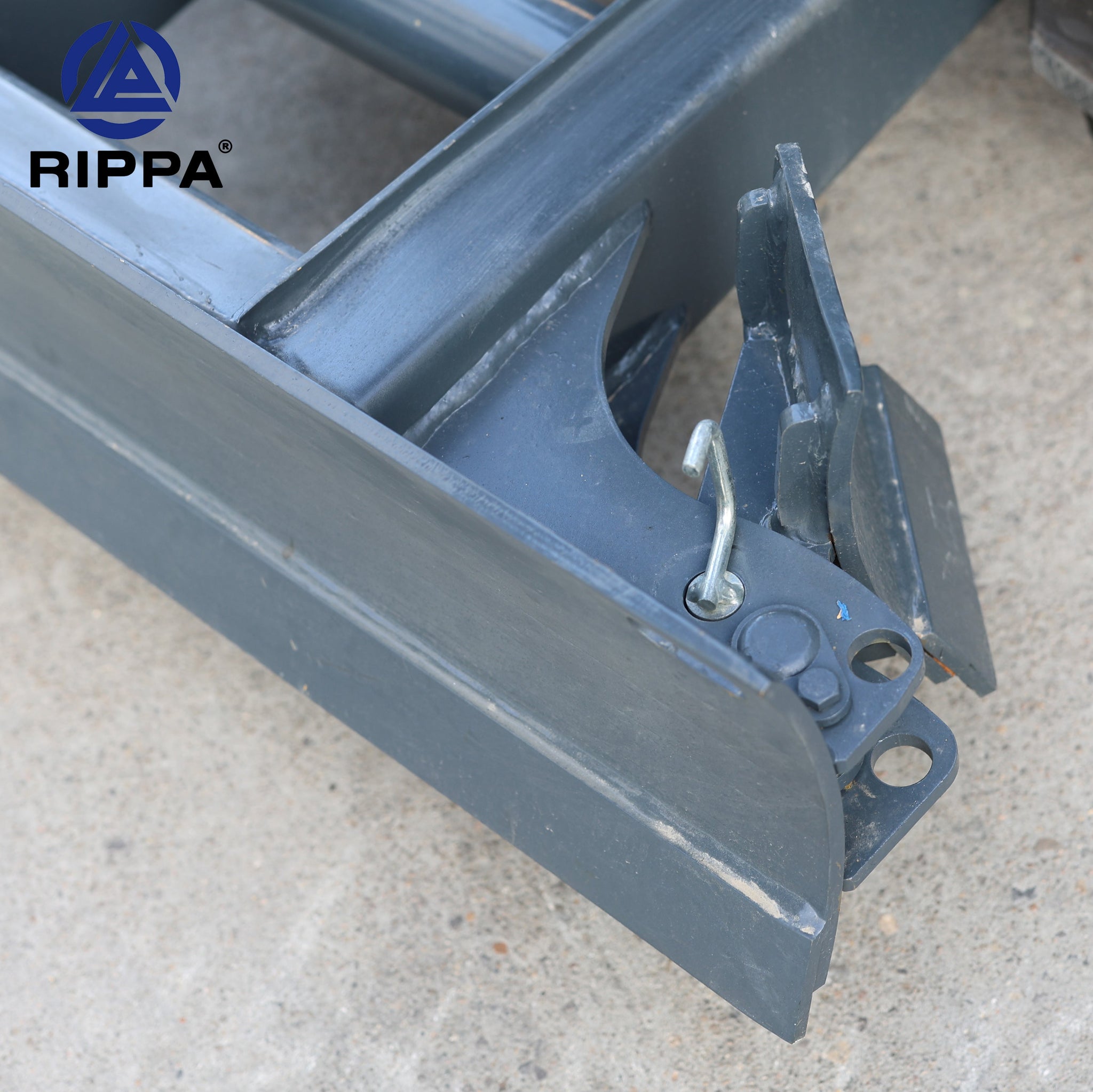

- Blade Width: 990 / 1300 mm
5. Shipping & Logistics
-
Wooden Box Size: 3500 × 1200 × 2000 mm
-
Units per 40HQ (Assembled): 12
6. Warranty
- Kubota Japanese engine with Australia wide warranty, delivered directly by Kubota
- 1-Year Warranty on Hydraulic Pump
- Full nationwide parts support and servicing available
