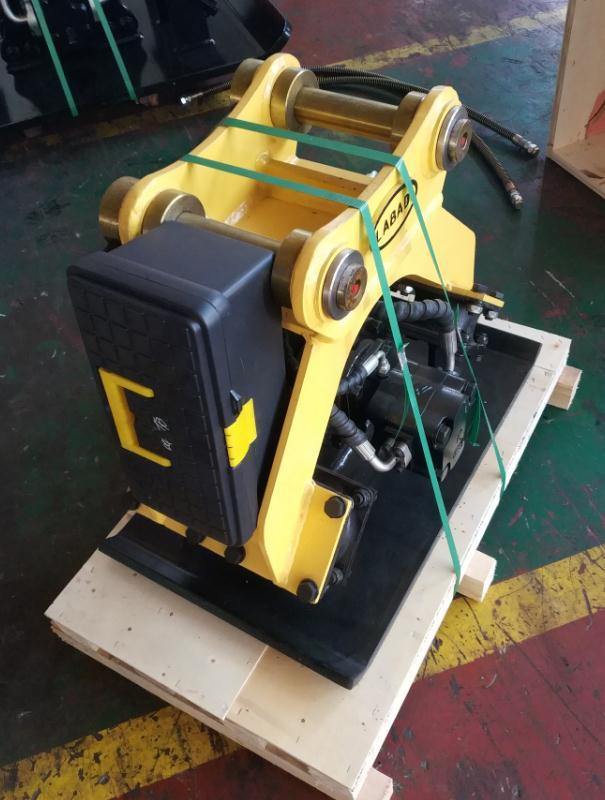

Labadi 5 Tonne Hydraulic Compactor

Regular price $4,260.70 Sale

Plate compactors are often used as attachments on an excavator or backhoe, replacing the bucket at the end of the stick. Excavator plate compactors can work productively virtually anywhere an excavator or backhoe boom can reach: in trenches, over and around pipe, or to the top of piling and sheet pile. It can work next to foundations, around obstructions, and even on steep slopes or rough terrain where conventional rollers and other machines either can't work or would be hazardous to try.

Constructed with high quality materials such as Q345B, NM360/400 and HARDOX 450/500 to ensure durability.

SPECIFICATIONS

Excavator Size: 4 tonne, 5 tonne, 6 tonne and 7 tonne.

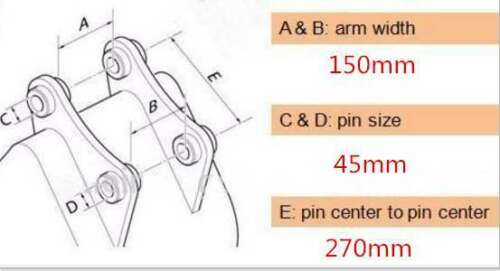

Pin Size: 45mm

Arm Width: 150mm

Pin Centre to Pin Centre: 270mm

Mass: 350kg

Working Pressure: 100-170 bar

Oil Flow: 45L/min

Bottom Measurement: 900*550*25

Hose Diameter: 1/2 inch

Frequency: 2000rpm

Impulse Force: 5 tonnes
